Anti water hammer valves

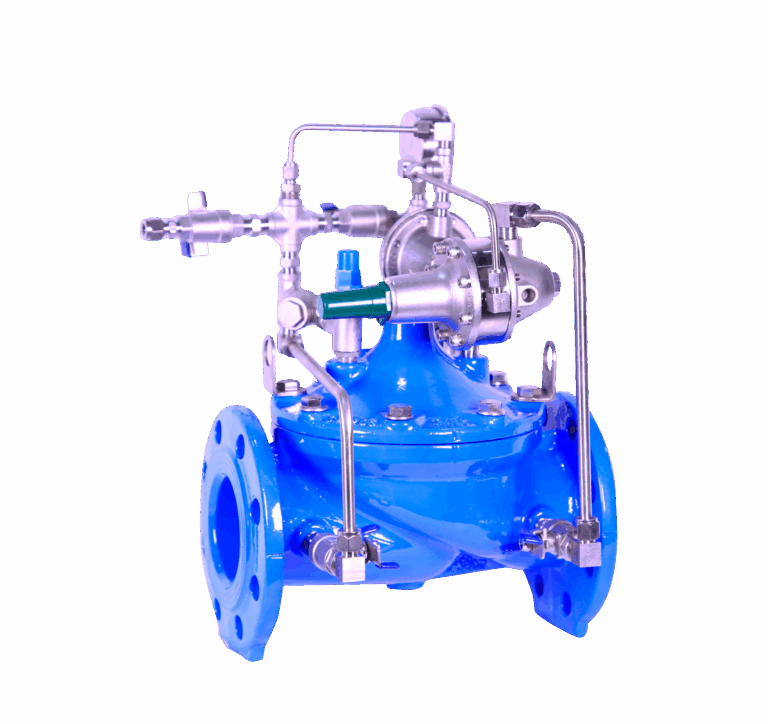

N550 Surge anticipation valve
- Nominal diameter: DN40 – DN1600
- Type of connection: Threaded and flange
- Media temperature:
– Water: 0°C to 70°C
– Fuel: -40°C to 70°C - Pressure range:
ISO PN10/PN16/PN25 – ANSI Class 125/150/300
JIS 10K/16K – KS Table D/E, KS4087 PN16 - Permissible medium/application:
Pressure, Flow, Level control, Smart control in municipality.
Water, pumping station, building, fire protection, irrigation, water treatment.
Fuel, Sea water, Clear water - Flange standard:
EN 1092-2 – ISO 7005-2 – ANSI or JIS – KS2129 or KS4087
