Axial guided check valves

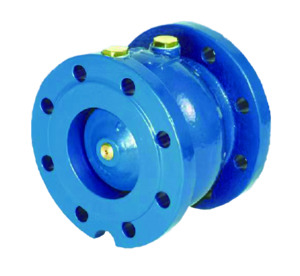

C300 Axial guided check valves

  • Nominal diameter: DN50 – DN350
  • Type of body: Flanged
  • Temperature: EPDM 0°C to 90°C
  • Pressure range: 10/16 bar
  • Permissible medium/application:
    Clear water, fire protection networks,
    pumping stations
  • Connection: PN10/16

C310 Non-slam check valves

  • Nominal diameter: DN50 – DN1600
  • Temperature: -10°C to 120°C
  • Pressure range: 10/16/25/40 bar
  • Permissible medium/application: Clear water
  • Connection: PN10/16/25

C320 Non-slam check valves SS 304 – EPDM

  • Nominal diameter: DN50 – DN350
  • Temperature: -10°C to 70°C
  • Pressure range: 10/16/20/25/40/50 bar
  • Permissible medium/application: Clear water
  • Connection: PN10/16/25/40, ANSI – ASA150/300, JIS 10/16K

C321 Non-slam check valves SS 304 – EPDM

  • Nominal diameter: DN400 – DN600mm
  • Temperature: -10°C to 70°C
  • Pressure range: 10/16/20/25/40/50 bar
  • Permissible medium/application: Clear water
  • Connection: PN10/16/25/40, ANSI – ASA150/300, JIS 10/16K

Clasar High dynamic response check valves – Clasar

  • Nominal diameter: DN80 – DN1800
  • Type of body: Wafer, Double flanges
  • Media temperature: -10°C to 130°C
  • Pressure range: 10/16/20/25/40/50 bar
  • Permissible medium/application : Drinking water pumping stations, Irrigation (degrilled water), Water treatment and distribution, Sea water (in option on request), Chemical industries
  • Connection: PN10/16/25/40, ANSI – ASA150/300
