Ball check valves

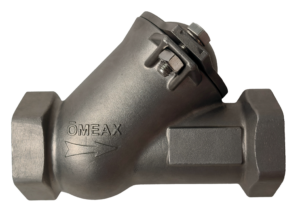

C400 Ball check valves – DI body – Threaded F/F

  • Nominal diameter : DN25 – DN80
  • Media temperature : 0°C to 70°C
  • Pressure range : 10 bars
  • Permissible medium / application : Waste Water, Viscous liquid, Loaded liquids
  • Connection : Threaded BSP
  • Ball : Aluminium coated NBR

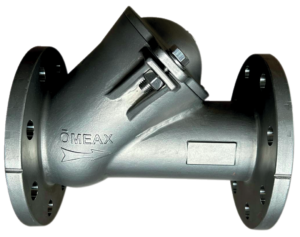

C401 Ball check valves – DI body – Flanged

  • Nominal diameter : DN25 – DN400
  • Media temperature : 0°C to 70°C
  • Pressure range : 10 bars
  • Permissible medium / application : Waste Water, Viscous liquid, Loaded liquids
  • Connection : PN10
  • Ball : Aluminium coated NBR

C410 Ball check valves – SS 316 body – Threaded F/F

  • Nominal diameter : DN25 – DN80
  • Media temperature : -10°C to 80°C
  • Max allowable pressure : 10 bars
  • Permissible medium / application : Waste Water, Viscous liquid, Loaded liquids
  • Connection : Threaded BSP
  • Ball : Aluminium coated NBR

C411 Ball check valves – SS 316 body – Flanged

  • Nominal diameter : DN50 – DN200
  • Media temperature : -10°C to 80°C
  • Max allowable pressure : 10 bars
  • Permissible medium / application : Waste Water, Viscous liquid, Loaded liquids
  • Connection : Flange
  • Ball : Aluminium coated NBR

C420 Ball check valves – PVC-U body – Threaded F/F – Glued/socket

  • Nominal diameter : DN32 – DN50
  • Media temperature : 0°C to 60°C
  • Pressure range : 10 bars
  • Permissible medium / application : Waste Water, Viscous liquid, Loaded liquids
  • Connection : Threaded F/F – Glued/socket
  • Ball : Aluminium coated NBR
