Ball valves

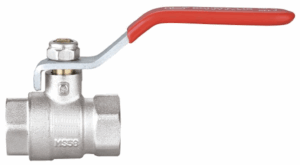

B100 Brass ball valves F/F
- Nominal diameter : DN15 – DN100
- Media temperature : -10°C to 120°C
- Pressure range : 16/25 bars
- Permissible medium / application : Water services, Heating and air- conditioning plants, Compressed air systems
- Connection : Threaded BSP F/F
B101 Brass ball valves M/M
- Nominal diameter : DN15 – DN25
- Media temperature : -10°C to 120°C
- Pressure range : 16/25 bars
- Permissible medium / application : Water services, Heating and air- conditioning plants, Compressed air systems
- Connection : Threaded BSP M/M
B102 Brass ball valves M/F
- Nominal diameter : DN15 – DN100
- Media temperature : -10°C to 120°C
- Pressure range : 16/25 bars
- Permissible medium / application : Water services, Heating and air- conditioning plants, Compressed air systems
- Connection : Threaded BSP M/F
B103 Brass ball valves F/M adjustable length
- Nominal diameter : DN15 – DN25
- Media temperature : 0°C to 50°C
- Pressure range : 8 bars
- Permissible medium / application : Water services, Industrial, Household
- Connection : Threaded BSP F/M
B200 Stainless steel ball valves – 1 pc
- Nominal diameter : DN8 – DN100
- Media temperature : -10°C to 200°C
- Pressure range : 16/25 bars
- Permissible medium / application : Water services, Heating and air-conditioning plants, Compressed air systems
- Connection : Threaded BSP F/F, M/M, M/F
B300 Stainless steel ball valves – 2 pcs
- Nominal diameter : DN8 – DN100
- Media temperature : -10°C to 200°C
- Pressure range : 25/63 bars
- Permissible medium / application : Water services, Heating and air- conditioning plants, Compressed air systems
- Connection : Threaded BSP F/F, M/M, M/F
B400 Stainless steel ball valves – 3 pcs
- Nominal diameter : DN8 – DN100
- Media temperature : -10°C to 200°C
- Pressure range : 25/63 bars
- Permissible medium / application : Water services, Heating and air- conditioning plants, Compressed air systems
- Connection : Threaded BSP F/F, M/M, M/F
B500 Magnetic brass ball valves F/F
- Nominal diameter : DN15 – DN25
- Media temperature : 0°C to 50°C
- Pressure range : 8 bars
- Permissible medium / application : Water services, Industrial, Household
- Connection : Compressing fitting F/ Threaded BSP F
B600 CONNECTING BRASS BALL VALVE
- Nominal diameter : DN20 – DN40
- Media temperature : 0°C to 50°C
- Pressure range : 16 bars
- Permissible medium / application : Water services, Water distribution
- Connection : Threaded ISO 7/HDPE
