Dismantling joints

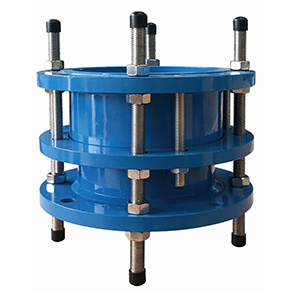

R400 Dismantling joints – 3 Flanged – DI – EPDM/NBR – PN10/16
- Nominal diameter : DN40 – DN1600 (other DN on request)
- Media temperature : -10°C to 120°C EPDM -10° C to 82 °C NBR
- Pressure range : 10/16 bars
- Permissible medium / application : Water distribution, Heating, HVAC. Pipes and valves mounting
- Connection : PN10/16
R401 Dismantling joints – 3 Flanged – DI – EPDM / NBR – PN25
- Nominal diameter : DN40 – DN1600 (other DN on request)
- Media temperature : -10°C to 120°C EPDM -10° C to 82 °C NBR
- Pressure range : 25 bars
- Permissible medium / application : Water distribution, Heating, HVAC. Pipes and valves mounting
- Connection : PN25
R500 Restreined dismantling joints – Flanged – DI – EPDM/NBR – PN10/16
- Nominal diameter : DN80 – DN1200 (other DN on request)
- Media temperature : -10°C to 120°C EPDM -10° C to 82 °C NBR
- Pressure range : 10/16 bars
- Permissible medium / application : Water distribution, Heating, HVAC. Pipes and valves mounting
- Connection : PN10/16
R501 Restreined dismantling joints – Flanged – DI – EPDM/NBR – PN25
- Nominal diameter : DN40 – DN1200 (other DN on request)
- Media temperature : -10°C to 120°C EPDM -10° C to 82 °C NBR
- Pressure range : 25 bars
- Permissible medium / application : Water distribution, Heating, HVAC. Pipes and valves mounting
- Connection : PN25
