Foot valves

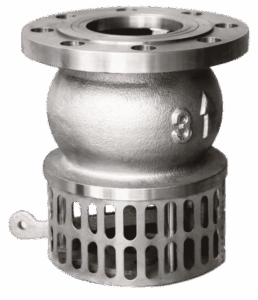

F300 Foot valves – Galvanised steel strainer – CI Body – EPDM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16

F301 Foot valves – Galvanised steel strainer – DI Body – EPDM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16

F310 Foot valves – WCB strainer – CI Body – EPDM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16

F311 Foot valves – WCB strainer – DI Body – EPDM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16

F320 Foot valves – 304SS strainer – CI Body – EPDM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16

F321 Foot valves – 304SS strainer – DI Body – EPDM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16

F330 Foot valves – 304SS strainer & body – FKM
- Nominal diameter : DN50 – DN300
- Media temperature : -10°C to 120°C
- Pressure range : 10/16 bars
- Permissible medium / application : Pumping, Clear water
- Connection : PN10/16
