Control valves
TC100 Control valves – Globe type – Stainless steel – threaded – 16 bar – 2/3ways
- Nominal diameter: DN15 – DN50
- Media temperature: -25°C to 130°C
- Pressure range: 16 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution, Steam, Overheated water
- Connection: Threaded BSP F/F
TC101 Control valves – Globe type – Stainless steel – threaded – 25 bar – 2/3ways
TC100XG Control valves – Globe type – Stainless steel – Victaulic – 16 bar – 2/3ways
- Nominal diameter: DN15 – DN50
- Media temperature: -25°C to 130°C
- Pressure range: 25 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution, Steam, Overheated water
- Connection: Threaded BSP F/F
- Nominal diameter: DN40 – DN65
- Media temperature: -25°C to 130°C
- Pressure range: 16 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution
- Connection: Victaulic
TC103 Control valves – Globe type – Stainless steel – Flanged – 16 bar – 2/3ways
- Nominal diameter: DN65 – DN150
- Media temperature: -25°C to 250°C
- Pressure range: 16 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution
- Connection: Flanged
TC104 Control valves – Globe type – Stainless steel – Flanged – 25 bar – 2/3ways
- Nominal diameter: DN65 – DN150
- Media temperature: -25°C to 250°C
- Pressure range: 25 bar
- Permissible medium / application : Chilled water, Hot water, Glycol solution
- Connection: Flanged
TC200 Control valves – Globe type – Ductile iron – 16 bar
- Nominal diameter: DN15 – DN500
- Media temperature: -25°C to 130°C
- Pressure range: 16 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution, Steam, Overheated water
- Connection: PN16
TC201 Control valves – Globe type – Ductile iron – 25 bar
- Nominal diameter: DN15 – DN500
- Media temperature: -25°C to 130°C
- Pressure range: 25 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution, Steam, Overheated water
- Connection: PN25

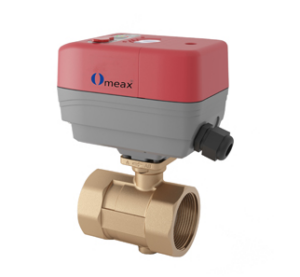

TB100 Control valves – V port ball valves – Brass – 25 bars – 2/3ways
- Nominal diameter: DN15 – DN50
- Media temperature: -5°C to 120°C
- Pressure range: 25 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution
- Connection: Threaded BSP F/F
TB200 Control valves – V port ball valves – Ductile iron – 16 bar
- Nominal diameter: DN40 – DN150
- Media temperature: -5°C to 120°C
- Pressure range: 16 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution
- Connection: PN16
TB201 Control valves – V port ball valves – Ductile iron – 25 bar
- Nominal diameter: DN40 – DN150
- Media temperature: -5°C to 120°C
- Pressure range: 25 bar
- Permissible medium / application: Chilled water, Hot water, Glycol solution
- Connection: PN25
