Brass valves
B100 Brass ball valves F/F
- Nominal diameter: DN15 – DN100
- Media temperature: -10°C to 120°C
- Pressure range: 16/25 bar
- Permissible medium/application: Water services, Heating and air-conditioning plants, Compressed air systems
- Connection: Threaded BSP F/F
B101 Brass ball valves M/M
- Nominal diameter: DN15 – DN100
- Media temperature: -10°C to 120°C
- Pressure range: 16/25 bar
- Permissible medium/application: Water services, Heating and air-conditioning plants, Compressed air systems
- Connection: Threaded BSP F/F
B102 Brass ball valves M/F
- Nominal diameter: DN15 – DN100
- Media temperature: -10°C to 120°C
- Pressure range: 16/25 bar
- Permissible medium/application: Water services, Heating and air-conditioning plants, Compressed air systems
- Connection: Threaded BSP M/F
B103 Brass ball valves F/M adjustable length
- Nominal diameter: DN15 – DN25
- Media temperature: 0°C to 50°C
- Pressure range: 8 bar
- Permissible medium/application: Water services, Industrial, Household
- Connection: Threaded BSP F/M
B500 Magnetic brass ball valves F/F
- Nominal diameter: DN15 – DN25
- Media temperature: 0°C to 50°C
- Pressure range: 8 bar
- Permissible medium/application: Water services, Industrial, Household
- Connection: Compressing fitting F/ Threaded BSP F

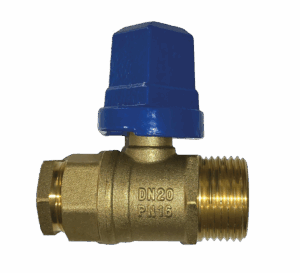

B600 Connecting brass ball valve
- Nominal diameter: DN20 – DN40
- Media temperature: 0°C to 50°C
- Pressure range: 16 bar
- Permissible medium/application: Water services, Water distribution
- Connection: Threaded ISO 7/HDPE
GB100 Brass gate valve with cast-iron handle
- Diameter: 1/2″ to 4″
- Media temperature: -10°C to 120°C
- Pressure range: 16 bar
- Thread: ISO228 (equivalent to DIN 259 and BS2779)
